The Acemagic K5 and the Quiet Politics of Hardware Design

Intel's new Wildcat Lake processor, debuting in the Acemagic K5 mini PC, marks a significant technical milestone. Yet the machine's limitations reveal a deeper tension in how technology is deliberately constrained for market reasons, a dynamic with implications that extend well beyond the enthusiast community. The K5 is a capable machine, but its design choices raise questions about consumer choice and the ethics of planned obsolescence.

A New Processor Generation Arrives

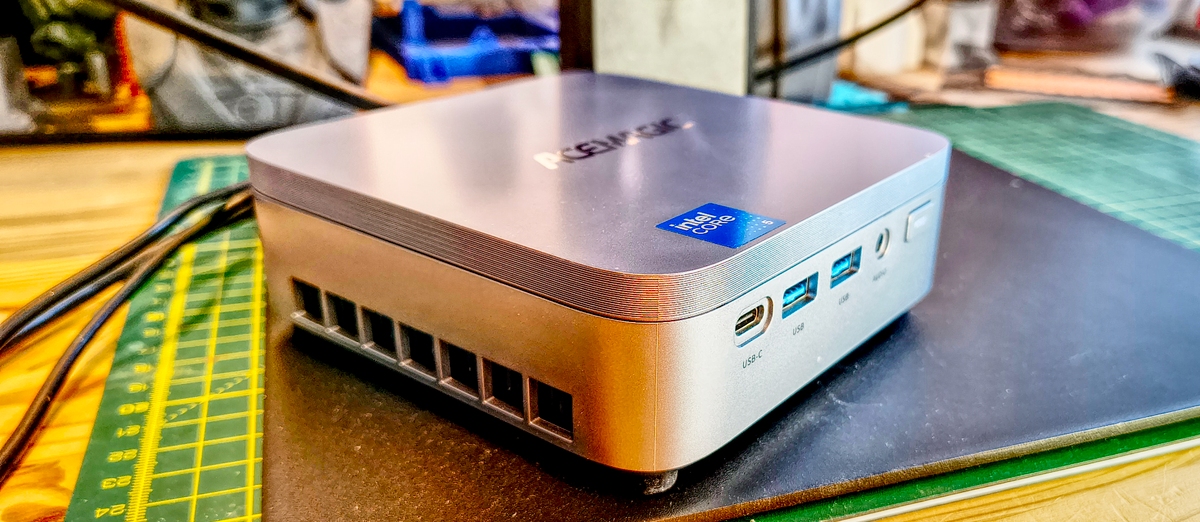

The Acemagic K5 is built around Intel's Core 5 Processor 320, the first mainstream mini PC part to use Intel's 18A process. This is a notable advancement. The chip features six cores, split between two performance cores and four efficiency cores, with a maximum turbo speed of 4.6GHz. This architecture represents a clear evolution from the older N-series chips, offering roughly double the aggregate capability of its predecessors.

The headline feature is AI throughput. Acemagic quotes 40 TOPS across the platform, with the NPU contributing 16 TOPS. This makes local AI tasks like background blur and transcription feasible without cloud reliance. However, the minimum requirement for running even Copilot locally is 47 TOPS, so the K5 is best suited to simpler models.

The PCIe Lane Problem

The most significant limitation of the K5 is not a design flaw by Acemagic but a deliberate constraint imposed by Intel. The Core 5 320 has only six PCIe 4.0 lanes, compared to nine PCIe 3.0 lanes in the previous generation. While each lane has double the bandwidth, the total is still restrictive. A typical AMD Ryzen 5 mobile CPU offers 20 lanes, providing 66% more bandwidth.

This shortfall has practical consequences. The M.2 NVMe slots run at PCIe 4.0 x2, limiting SSD speeds to less than 1800MB/s. Acemagic compounded this by installing a Gen3 drive, which further reduces performance. The result is a system that is fast in CPU and GPU tasks but disappointingly slow in storage access.

It is difficult to avoid the conclusion that Intel deliberately limited these chips to protect its higher-end Core Ultra lineup. By restricting PCIe lanes, they ensured that low-cost systems could not threaten more profitable products. This is a common but regrettable practice in the technology industry, one that prioritizes market segmentation over consumer value.

Design and Build Quality

The K5's design is a mixed affair. The plastic enclosure is light and easy to mount, but it lacks the premium feel of metal alternatives. The chassis is compact at 128 by 128 by 41.3mm, and the 25W TDP should ensure quiet operation. Access to the internals is possible but not tool-less, requiring the removal of four screws and a pry to detach a thermal plate.

The port selection is adequate but not generous. There are two USB 3.2 Gen 2 ports and a USB-C 3.2 Gen 2x2 port on the front, with four USB-A ports, HDMI 2.0, DisplayPort, and a 2.5GbE LAN port on the rear. Notably, there is no USB4, which is becoming a standard expectation even on budget machines.

Performance in Context

In benchmarks, the Core 5 320 outperforms the older N150 in nearly every respect. Single-core performance is particularly strong, even surpassing the Intel Core Ultra 5 125H. Graphics performance is also respectable, beating the Intel Core i7 12650H. These gains come at a power cost, with the K5 running at 9-25W compared to the 9-15W of its predecessor.

However, the storage bottleneck undermines these gains. The system drive's speed is less than 1800MB/s in both read and write, half of what the drive is capable of. This is a frustrating compromise that detracts from an otherwise capable machine.

Pricing and Value

The K5 is priced at $559 for the only US SKU, which includes the Core 5 320, 16GB of LPDDR5 memory, and a 512GB SSD. In the EU, a second SKU with the Core 3 304, 12GB of RAM, and 256GB of storage will be available for €349. This pricing places the K5 in direct competition with more established options.

For comparison, the GMKtec M6 Ultra Mini PC offers an AMD Ryzen 5 7640HS, dual Gen4 x4 M.2 slots, USB4, and upgradable memory for $459.99. The Acemagic K5 is priced above what its specifications can justify, particularly given its storage limitations.

Should You Buy the Acemagic K5?

The K5 is a capable machine for everyday tasks like browsing, office work, and light content creation. Its AI capabilities and improved CPU performance are welcome additions. However, the storage bottleneck and lack of USB4 are significant drawbacks.

If the price were closer to $400, the K5 would be a compelling recommendation. At its current price, it faces stiff competition from AMD-based systems that offer better value. The K5 is an improvement over what it replaces, but it is not the best mini PC available.

Frequently Asked Questions

What is the Acemagic K5?

The Acemagic K5 is a mini PC powered by Intel's new Core 5 320 processor, built on the 18A process. It features six cores, 16GB of LPDDR5 memory, and a 512GB SSD, with a focus on local AI tasks.

Why is the SSD performance limited?

The SSD performance is limited by the PCIe lane budget of the Wildcat Lake platform. Intel provided only six PCIe 4.0 lanes, which are shared across storage, networking, and USB. The M.2 slots run at x2, and Acemagic installed a Gen3 drive, further reducing speeds.

Is the Acemagic K5 good value?

At $559, the K5 is priced above what its specifications justify. Competing AMD-based systems offer more PCIe lanes, USB4, and upgradable memory for a lower price. The K5 would be better value at around $400.

When will the Acemagic K5 be available?

The K5 is available for pre-order from Acemagic.com, with shipping expected from mid-October 2026. EU models will be available from October 12, 2026.
